Steering Rack & Pinion Side Mount
![Steering Rack & Pinion Side Mount Steering Rack & Pinion Side Mount](/account/images/image.img?color=000000&text=daf4da&accent=000000&compliment=daf4da&navigation=fcff4e&heading=fcff4e&title=0b146c&logo=fcff4e&link=fcff4e&picture.image.url=%2Ffiles%2F2086981%2Fuploaded%2Fpro9331.jpg&picture.width.max=181&picture.image.mask.apply=false&stage.width.max=454&cache=1721748613011) |
Click to enlarge image(s)
|

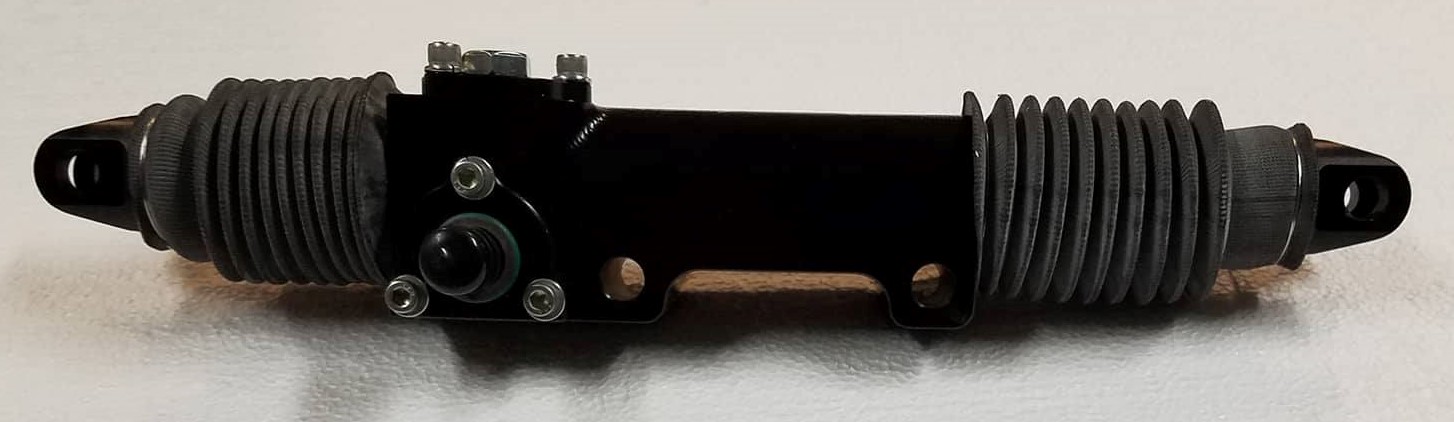

Steering Rack & Pinion side mount
This is the rack and pinion of choice, if you are running a dwarf car or building some other lightweight off road car. This aluminum rack accepts 1/2" rod ends that are on 15" centers, has 2 side mounting 1/2" holes. Uses 5/8"-36 or 3/4" coupler or u-joint.
1-1/4 turns lock to lock and 4" of rack travel lock to lock.
